U Shape Dlc Coated 3 Flute CNC Cemented Carbide Square End Mill For Aluminium
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC55 |
| Minimum Order Quantity | 1pcs for standard size |
| Price | Negotiable for Aluminum End Mill |
| Packaging Details | 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton. |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | U Shape Big Feed Dlc Coated 3 Flute CNC Cemented Carbide Square End Mill For Aluminium | Type | Side Milling Cutter |
|---|---|---|---|
| Flute | 3 Flute | Customized Size | Accepted |
| Specification | General Use | Brand | RLD |
| Application | Aluminium, Brass And Other Soft Metal,etc | Coating | Rainbow Color DLC Coating |
| Feature | Durable Tool Life | Origin | China |
| High Light | CNC Cemented Carbide Square End Mill,3 Flute Carbide Square End Mill,HRC55 U Shape Aluminum End Mill |
||
Product Description

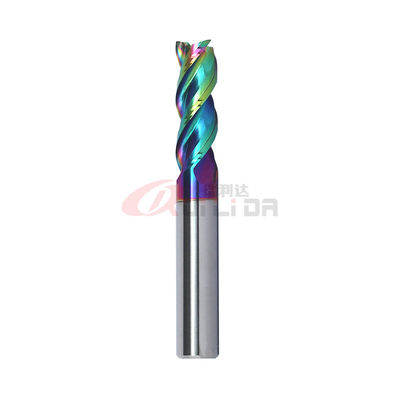

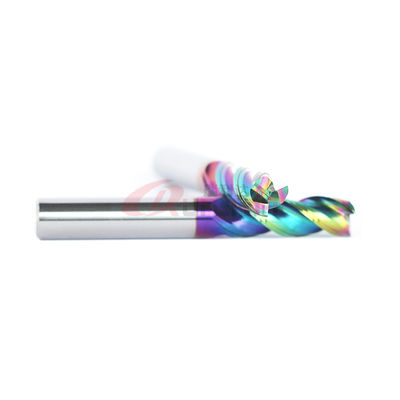

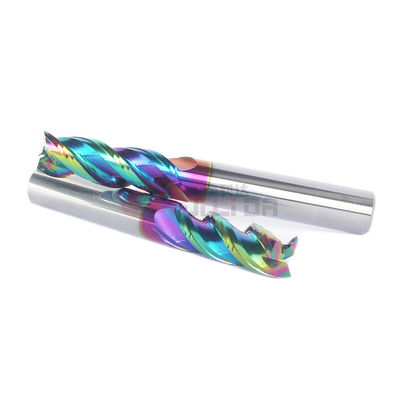

U Shape Big Feed Dlc Coated 3 Flute CNC Cemented Carbide Square End Mill for Aluminium
RLD End Mill Catalog in English.pdf
Products Features:
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer
2. U shape: Suit for big feed machining
3. DLC coating: DLC coating can increase lifetime 2-3 times longer
4. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved
| Product name | U Shape Big Feed Dlc Coated 3 Flute CNC Cemented Carbide Square End Mill for Aluminium |
| Size | Customized |
| Suitable for | Aluminum, Copper, brass, etc |
| Feature | Can be used for roughing and finishing |
| Flute Number | 3 |
| Coating | DLC |
| Helix angle | 40° |
| Co | 12% |
| HRA | 92.8 |
| TRS Min(N/mm²) | 4000 |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
| DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 4 | 50 | 12 | 4 | 3 |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse

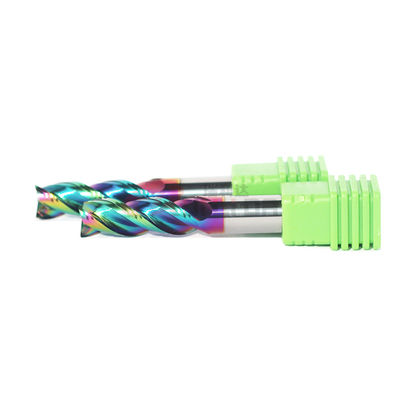

Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
Our company is especially producing carbide end mills, drill bits, and reamers.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by imported grinding machines.
The precision can be assured.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
