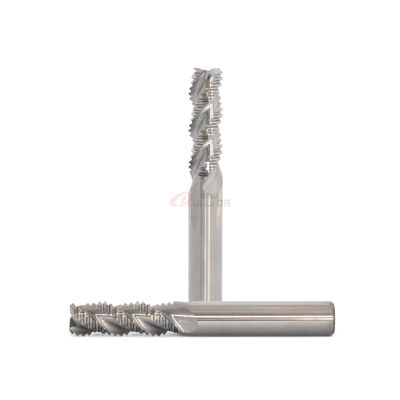

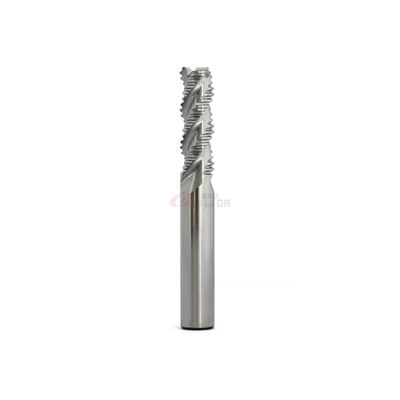

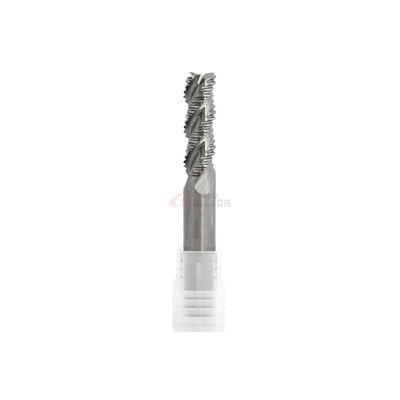

3/8" 5/16" 8mm Solid Carbide Roughing End Mill Coating For Aluminum 3 Flutes HRC50
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flute 8mm Aluminum End Mill For Rough Milling | Flute Dia | 8mm |
|---|---|---|---|
| Flute Length | 24mm | Overall Length | 60mm |
| Coating | Uncoating/customized | Helix | 45 |
| Tolerance | 0/-0.02mm | Single Ordouble End | Single |
| High Light | 8mm roughing end mill HRC50 RLD,3/8 carbide roughing end mill,5/16 roughing end mill HRC50 RLD |
||
Product Description
HRC50 Aluminum End Mill Roughing 3 Flutes 8mm Solid Carbide Roughing End Mill
End mill for machining aluminum material:
Rake angle for improving cutting quality and enlarged chip pocket realized high-efficiency machining.
Furthermore, the special treatment of a cutting edge restricting chattering during machining contributes to the improvement of machined surface quality and the extension of the service life.
| Product name |
HRC50 Aluminum End Mill 8mm Roughing End Mill |
| Feature | Coarse pitch with high efficiency |
| Suitable for | Aluminum material |
| Machine type | CNC Milling Machine |
| Flutes | 3 |
| Coating | Uncoated |
| Helix angle | 45° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
|
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
|
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
|
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
|
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC50 Roughing End Mill for Aluminum |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
| 14 | 100 | 45 | 14 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 18 | 100 | 45 | 18 | 3 |
| 20 | 100 | 45 | 20 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specialized in producing
carbide end mills, carbide drill bits, and carbide reamers.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & machine.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So the stability of our end mill can be assured.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
