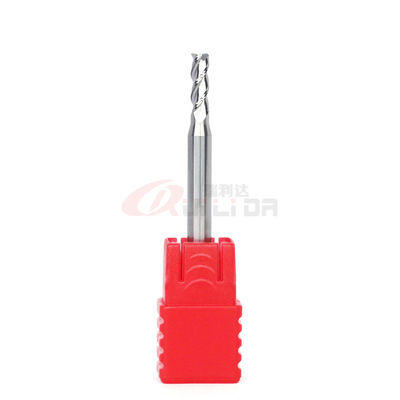

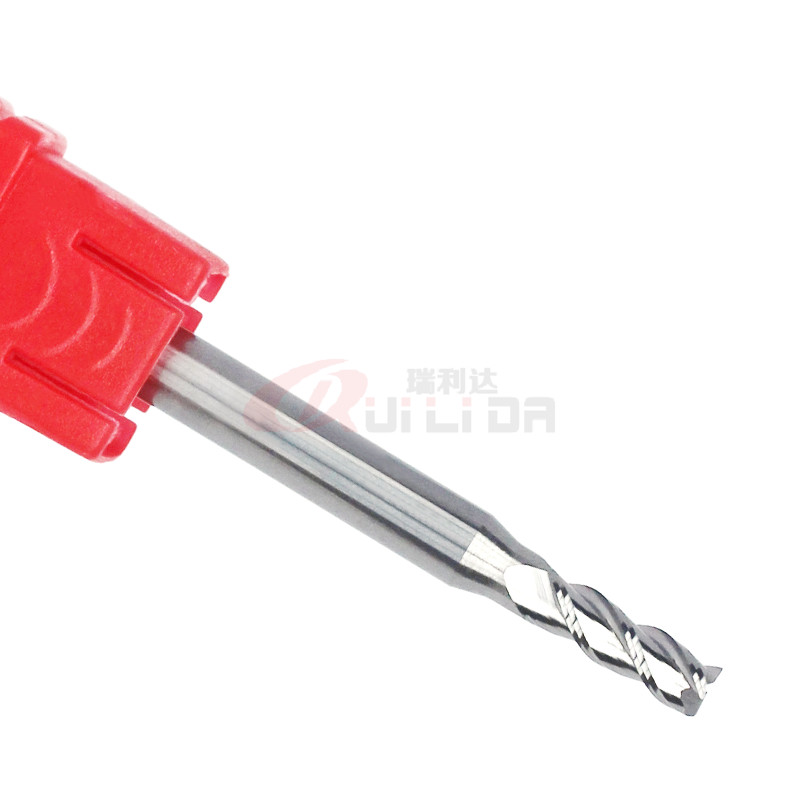

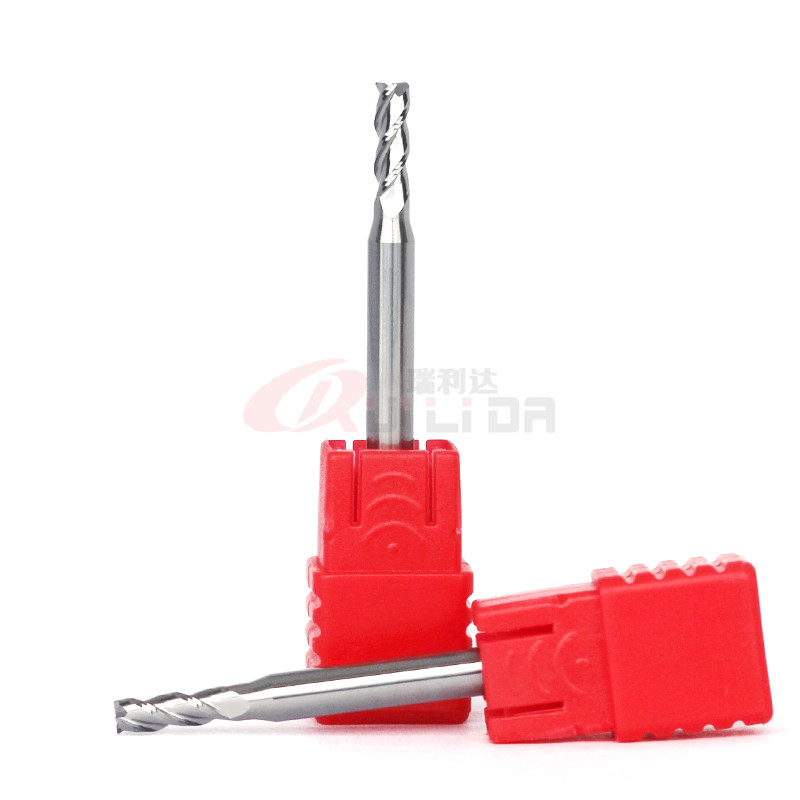

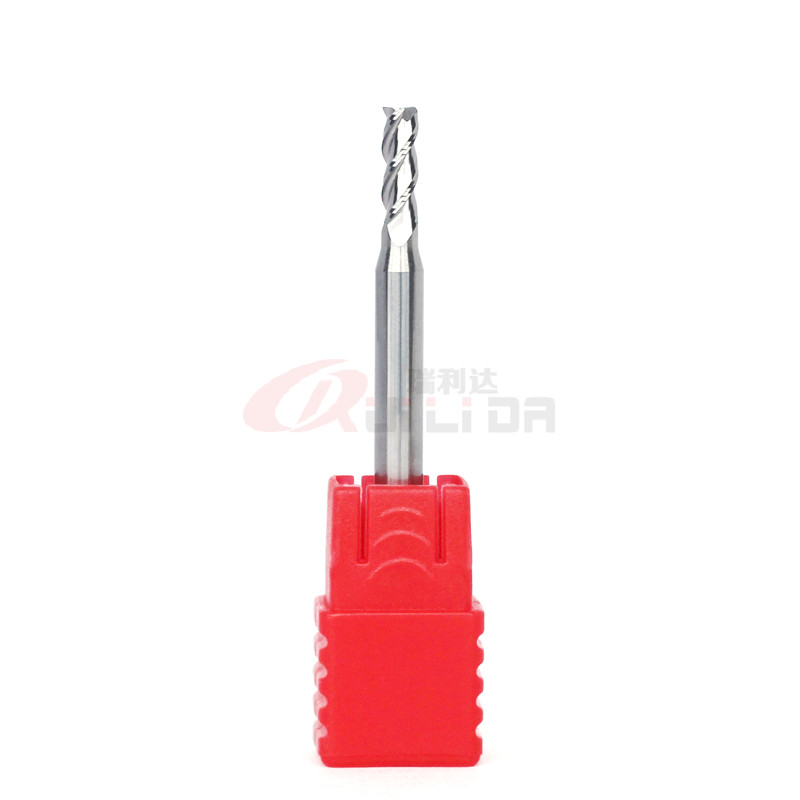

Alu Power End Mill Cutter 3mm 0.118" 3 Flutes Carbide Flat
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC55 3mm Flat End Mill For Alu | Flute Dia | 3mm |
|---|---|---|---|
| Flute Length | 9mm | Overall Length | 50mm |
| Shank Dia | 4mm | Flute Number | 3 |
| Helix | 40° | Suitable | Finish Milling |
| Carbide Rod | CB WF25 | Coating | Uncoating |
| Highlight | alu-power 3 flute carbide end mill 3mm 0.118",Alu Power End Mill Cutter 3mm 0.118,3 flute end mill for aluminum HRC555-3mm |
||
Product Description
HRC55 CNC 3 Flutes Solid Tungsten Carbide Flat Alu Power End Mill Cutter 3mm
| Product name | RLD HRC55 3 flutes 3mm square end mill for Aluminum |
| Size | 3×9×50×4D×3F |
| Suitable for | Aluminum, copper, resin, etc. |
| Feature | Design with non-sticky cutting and shine surface appearance. |
| Flute Number | 3 |
| Coating | Uncoated |
| Helix angle | 40 degree |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating can be customized |
| RLD Square End Mill for Aluminium Standard Size HRC50 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 2/3 |
| 2 | 50 | 6 | 4 | 2/3 |
| 3 | 50 | 9 | 4 | 2/3 |
| 4 | 50 | 12 | 4 | 2/3 |
| 4 | 75 | 16 | 4 | 2/3 |
| 4 | 100 | 20 | 4 | 2/3 |
| 6 | 50 | 18 | 6 | 2/3 |
| 6 | 75 | 24 | 6 | 2/3 |
| 6 | 100 | 30 | 6 | 2/3 |
| 8 | 60 | 24 | 8 | 2/3 |
| 8 | 75 | 32 | 8 | 2/3 |
| 8 | 100 | 40 | 8 | 2/3 |
| 10 | 75 | 30 | 10 | 2/3 |
| 10 | 100 | 40 | 10 | 2/3 |
| 12 | 75 | 36 | 12 | 2/3 |
| 14 | 100 | 45 | 14 | 2/3 |
| 16 | 100 | 45 | 16 | 2/3 |
| 18 | 100 | 45 | 18 | 2/3 |
| 20 | 100 | 45 | 20 | 2/3 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which was established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, etc.
We also can send the parcels to your shipping agent in China.
3. How about the delivery time?
Around 1-3 working days after receiving the payment for the end mills in stock.
Around 7-10 working days after receiving the payment for the end mills out of stock.
Large quantities will take a longer time to produce.
4. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
5. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
8. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
9. What is the location of your factory?
Our factory is located in Changzhou City, Jiangsu Province, China.
