7mm 12mm 1/2" 6mm 3/16" 3 Flute End Mill Roughing Square End Mill CNC
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC50-6mm |
| Minimum Order Quantity | 1 |
| Price | 3.0USD/negotiable |
| Packaging Details | 1pcs piece end mill in one plastic tube, ten pieces a bundle, then in a carton. |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3 Flutes 6mm Square End Mill For Aluminium | Flute Dia | 6mm |
|---|---|---|---|
| Flute Length | 18mm | Overall Length | 50mm |
| Shank Dia | 6mm | Helix | 45° |
| Polishing | Yes | Suitable For | Aluminium, Brass, Acrylic, Resin, Etc. |
| High Light | 1/2 3 flute end mill HRC50 RLD,7mm square end mill HRC50 RLD,square hole end mill HRC50 RLD |
||
Product Description

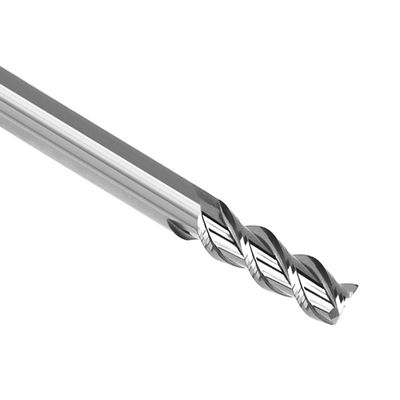

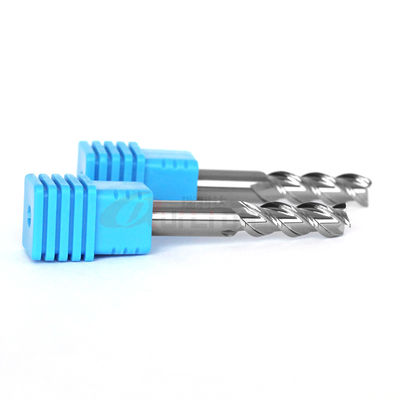

HRC50 3 Flutes CNC Milling Cutter 6mm Solid Carbide Square End Mill for Aluminum
| Product name | RLD HRC50 3 flutes 6mm aluminum end mill |
| Size | 6×18×50×6D×3F |
| Suitable for | aluminum, brass, acrylic, etc |
| Machine type | CNC milling machine |
| Flutes | 3 |
| Coating | UIncoated |
| Helix angle | 45° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the workpiece. |
| RLD Square End Mill for Aluminium Standard Size HRC50/55/60 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 2/3 |
| 2 | 50 | 6 | 4 | 2/3 |
| 3 | 50 | 9 | 4 | 2/3 |
| 4 | 50 | 12 | 4 | 2/3 |
| 4 | 75 | 16 | 4 | 2/3 |
| 4 | 100 | 20 | 4 | 2/3 |
| 6 | 50 | 18 | 6 | 2/3 |
| 6 | 75 | 24 | 6 | 2/3 |
| 6 | 100 | 30 | 6 | 2/3 |
| 8 | 60 | 24 | 8 | 2/3 |
| 8 | 75 | 32 | 8 | 2/3 |
| 8 | 100 | 40 | 8 | 2/3 |
| 10 | 75 | 30 | 10 | 2/3 |
| 10 | 100 | 40 | 10 | 2/3 |
| 12 | 75 | 36 | 12 | 2/3 |
| 14 | 100 | 45 | 14 | 2/3 |
| 16 | 100 | 45 | 16 | 2/3 |
| 18 | 100 | 45 | 18 | 2/3 |
| 20 | 100 | 45 | 20 | 2/3 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools was established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide end mills according to your drawings or samples.
7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank for free.
We also can make customized labels.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the tolerance of each tool.
9. Can it be used for cutting wood?
Yes
