HRC50 3 Flute Tungsten Solid Carbide Roughing End Mills For Wood Router Bit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 Roughing End Mills For Wood | Coating | Uncoated/DLC Coating |
|---|---|---|---|
| Raw Material | Carbide | Suitable For | Aluminum, Brass, Wood, Etc |
| Feature | Rough Milling For Wood | Shank Torlerance | H6 |
| Tolerance | Within 0/-0.02mm | Origin | China |
| High Light | Tungsten Solid Carbide Roughing End Mills,HRC50 3 Flute Roughing End Mills,Roughing End Mills For Wood |
||
Product Description

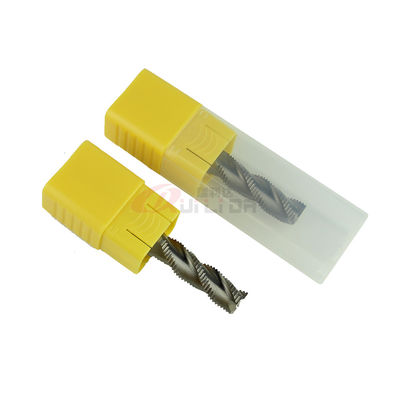

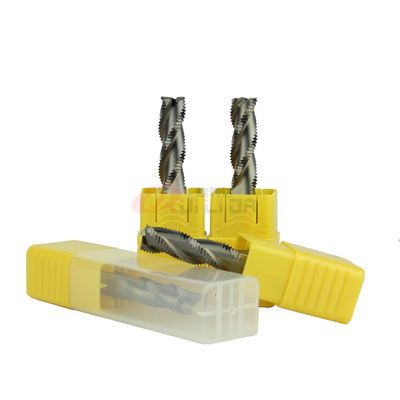

HRC50 3 Flute Tungsten Solid Carbide Roughing End Mills For Wood Router Bit
This kind of roughing end mill with 30-degree helix.
It's suitable for cutting wood with high feed and speed.
| Product name |
HRC50 3 Flutes Roughing End Mills for Wood |
| Feature | Coarse pitch high-efficiency rough milling |
| Suitable for | Wood, aluminum, etc |
| Machine type | CNC Milling Machine |
| Flutes | 3 |
| Coating | Uncoated / Customized coating |
| Helix angle | 30° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC50 Roughing End Mill for Aluminum |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
| 14 | 100 | 45 | 14 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 18 | 100 | 45 | 18 | 3 |
| 20 | 100 | 45 | 20 | 3 |
FAQ
1. What is roughing end mill?
Roughing End Mills, also known as ripping cutters or hoggers, are designed to remove
large amounts of metal quickly and more efficiently than standard end mills.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of various kinds of round carbide tools.
3. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & machine.
4. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
Our company also can send the parcels to your shipping agent in China.
5. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
6. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY (Chinese Yuan) is also acceptable.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
8. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
