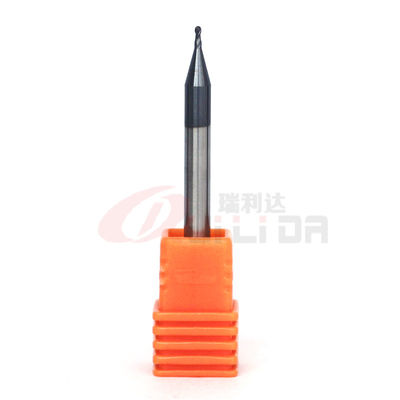

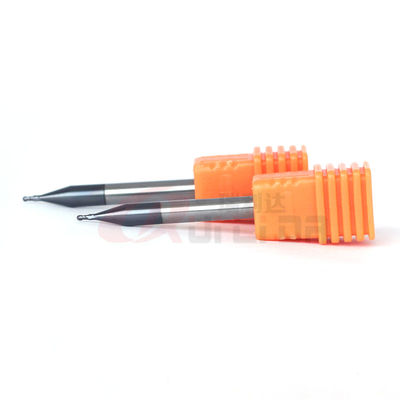

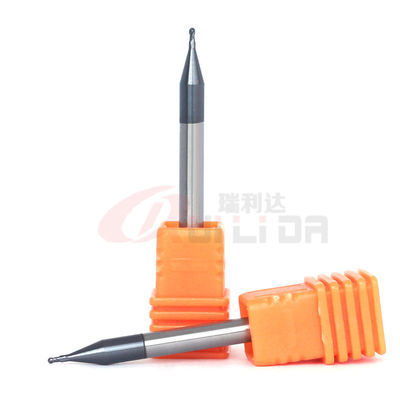

3/8" 1/8" Uncoated Solid Carbide Ball End Mill For Stainless Steel 2 Flute
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 Imperial Milling Cutters 2F Ballnose End Mill | Diameter | 1/16" |
|---|---|---|---|
| Flute Length | 1/8" | Overall Length | 2" |
| Shank Diameter | 1/8" | Coating | TiAlN |
| Suitable For | Iron, Steel, Stainless Steel, Etc | Carbide Rod | ZY10EF |
| High Light | uncoated carbide ball end mill,2 flute end mill set,3/8 2 flute carbide end mill |
||
Product Description
HRC50 Imperial Milling Cutters 2 Flute Ballnose End Mill For Stainless Steel
| Product name | Imperial Milling Cutters 2 Flute Ballnose End Mill |
| Specification | 1/16*1/8*2*2F |
| Suitable for | Iron, Steel, Stainless Steel, etc |
| Milling type | CNC Milling Machine |
| Flutes | 2 |
| Coating | AlTiN |
| Helix | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Flute Tolerance | Within 0/-0.02mm |
| Shank Tolerance | h6 |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the workpiece |
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide end mills established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
They are imported from Australia and Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
For large amount, we can send by air or by sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
