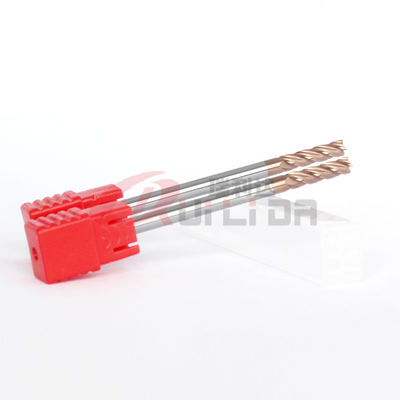

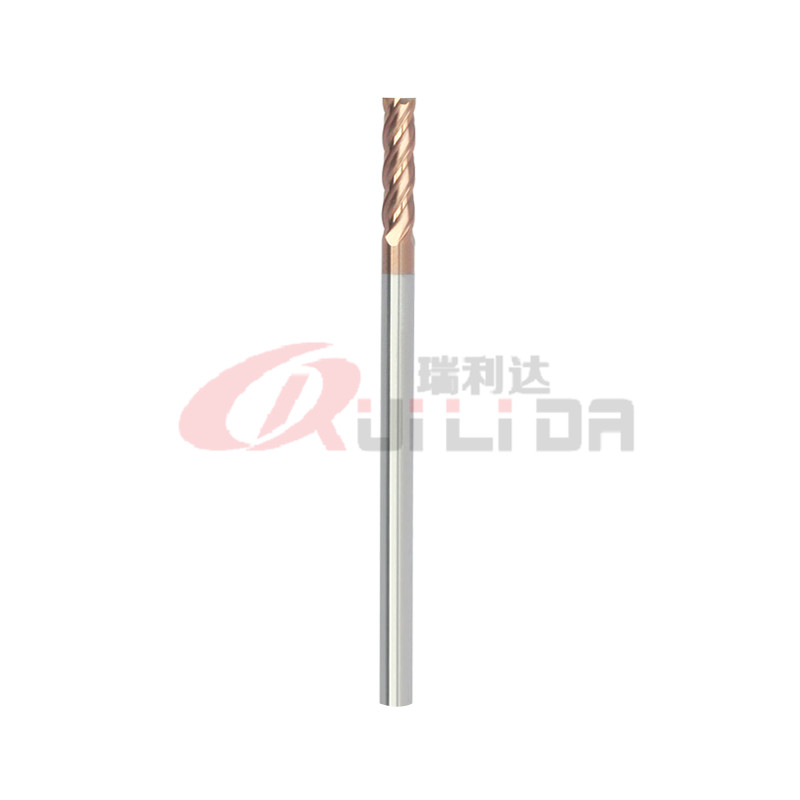

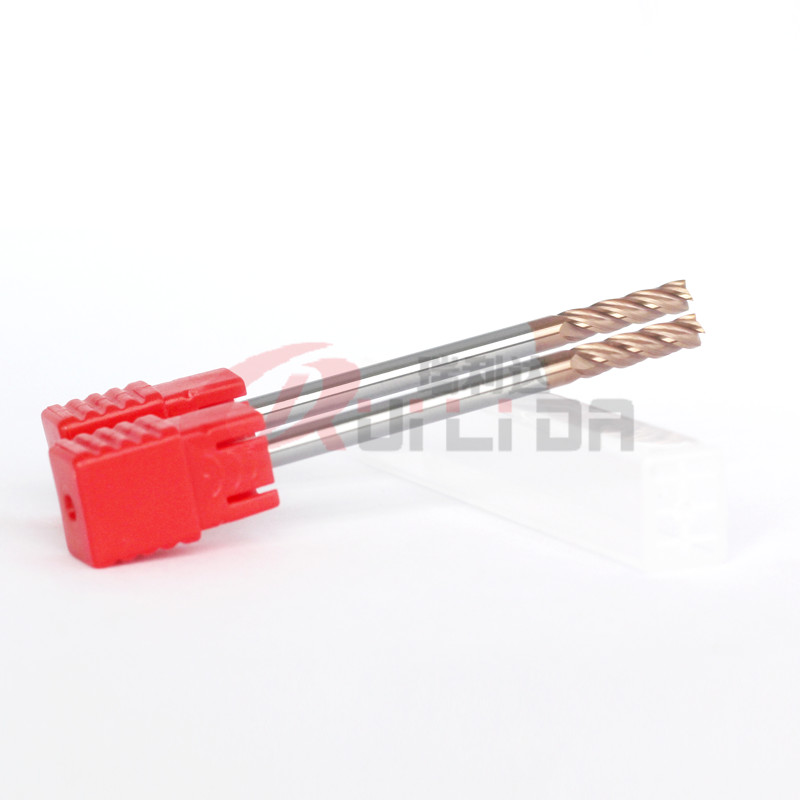

3.57mm 9/64" Imperial End Mills Bits Extra Long Carbide 4 Flutes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Imperial Milling Cutters 9/64" End Mill | Coating | AlTiSiN/customized |
|---|---|---|---|
| Material | WF25 CB | Diameter | 9/64" |
| Overall Length | 4" | Helix | 35 Degree |
| Produced By | ANCA & | Flute Number | 4 |
| High Light | Imperial Endmills 3.57mm,3.57mm 9/64" Imperial End Mills Bits,3.57mm Imperial Endmills |
||
Product Description
HRC55 Imperial Milling Cutters 4 Flutes 9/64" Extra Long Carbide End Mill Bits
The advantages and properties of the aluminum-titanium-silicon-nitrite coating (AlTiSiN coating):
Aluminum-titanium-silicon-nitrite (AlTiSiN) is a combination of aluminum, titanium, silicon, and nitrogen.
This coating is intended for use when machining hard to very hard materials and therefore for high machining temperatures.
The AlTiSiN coating enables hardened, alloyed steels and cast iron to be machined.
Another feature of this coating is that it is suitable for dry and wet machining and therefore the use of cooling lubricant is not absolutely necessary. However, the use of coolant generally increases the service life of the milling cutter.
| Product name | HRC50 Imperial Milling Cutters 4 Flutes 3/64" End Mill |
| Feature | Wide application |
| Suitable for | Hardened steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiSiN / customized |
| Helix | 35 degree |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
Clent's Feedback
FAQ
1. Do you prepare inch size carbide end mill in stock?
For inch size end mill, we only produce against the order.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide end mills, drill bits, and reamers.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is from Australia
is from Germany.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY is also acceptable.
6. What kind of inspection facilities do you have.
We have PG1000, Omega to ensure the precision of each tool.
