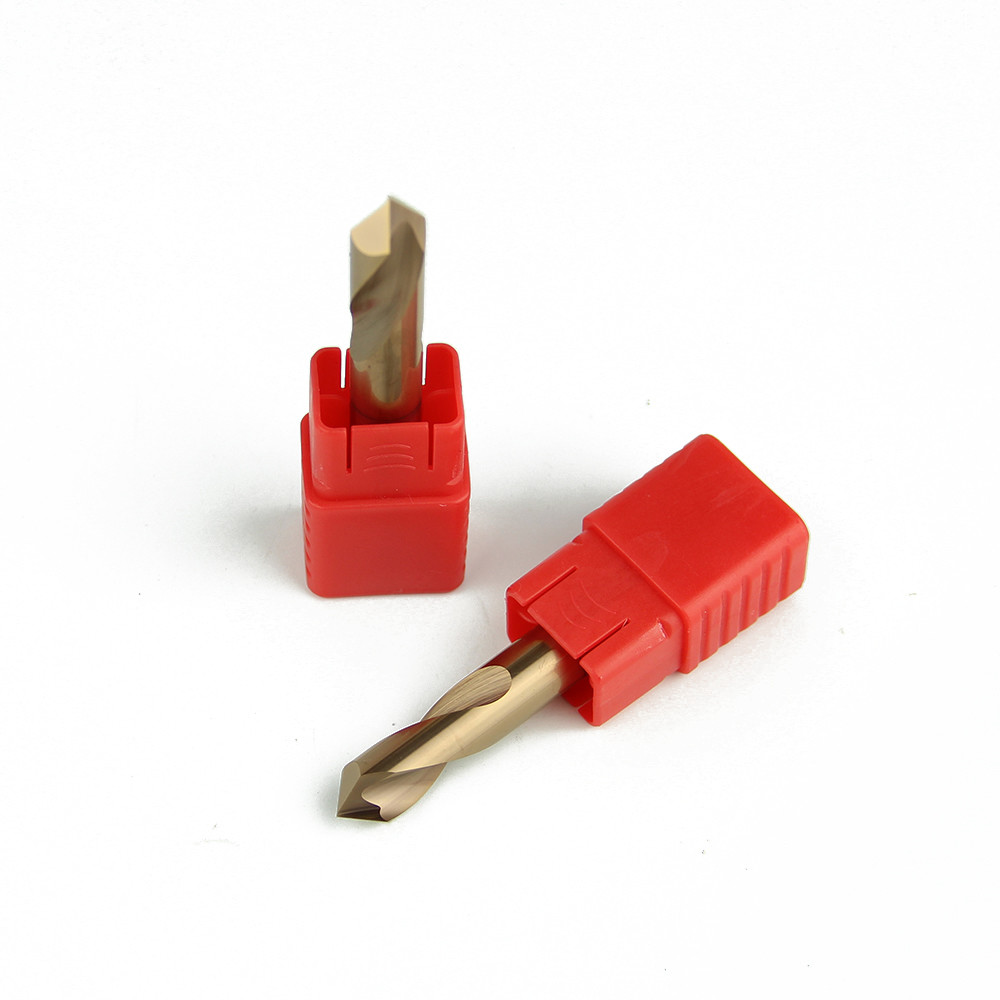

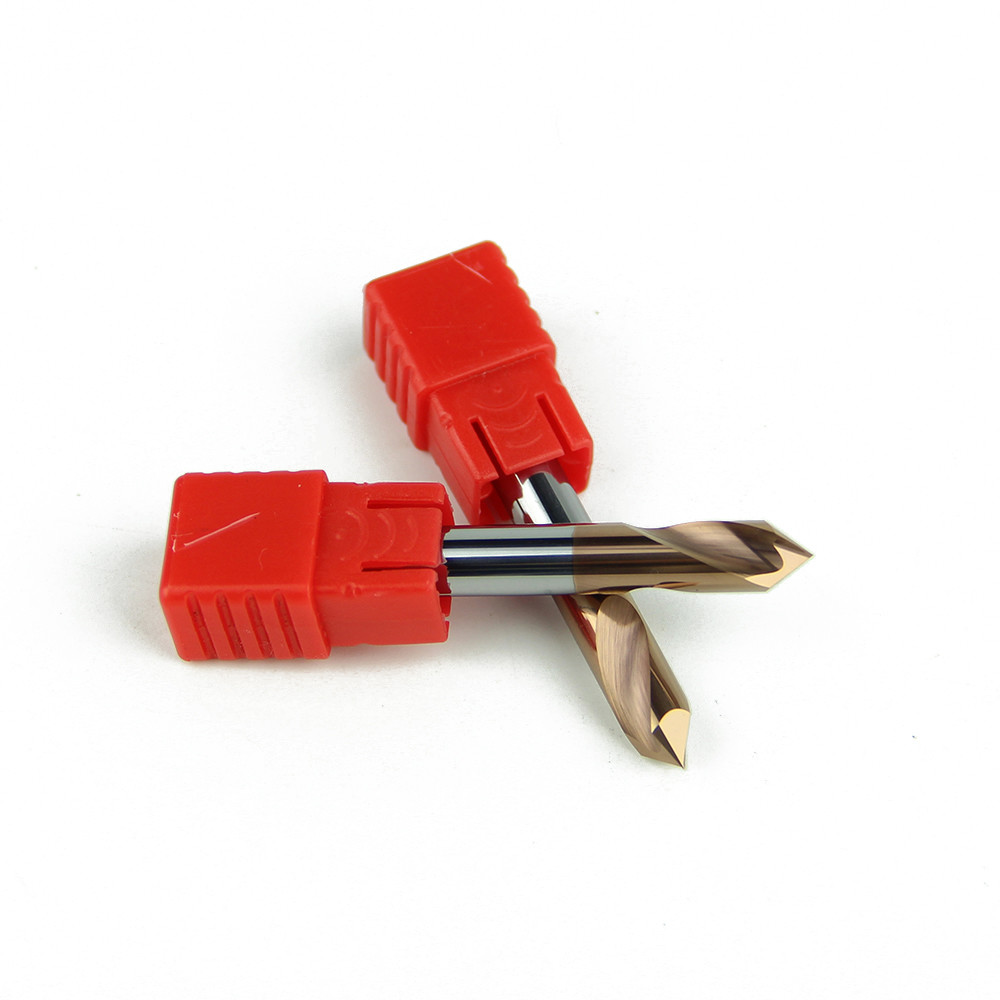

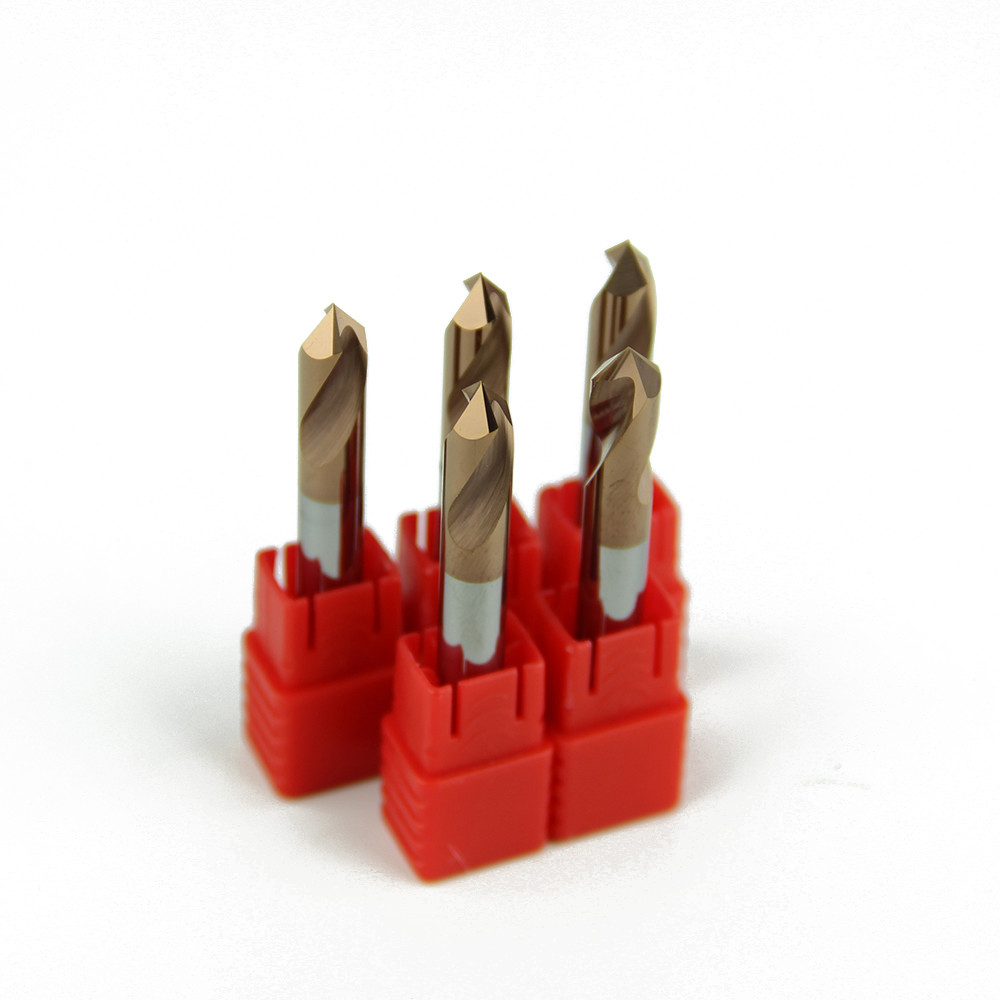

90 Degree Solid Carbide Chamfer End Mill Cutter Spot Drill Coated
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coating | AlTiSiN/Customized | ||
|---|---|---|---|
| Highlight | 90 degree chamfer end mill,solid carbide chamfer mills,carbide chamfer mill |
||
Product Description
HRC55 Chamfer Milling Cutter Spot Drill & Chamfer Cutter 90 Degree Coated
| Product name | HRC55 Chamfer Milling Cutter Spot Drill & Chamfer Cutter |
| Feature | For chamfering |
| Suitable for | Iron, cast iron, steel, stainless steel, etc |
| Machine type | CNC milling machine |
| Flutes | 2/4/customized |
| Coating | AlTiSiN/Customized |
| Helix angle | 35 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
FAQ
1. Do you prepare the Chamfer Milling Cutter in stock?
Yes, we usually prepare 90 degree 2 flutes chamfer cutter in stock.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,
Brazil, etc.
7. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
