1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating

  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
  • 1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating
Place of Origin China
Brand Name RLD Tools
Model Number HRC55-R2
Minimum Order Quantity 1
Price EXW 2.6SD
Packaging Details 1pcs end mill in a plastic pipe, ten pieces for a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC55 2 Flutes 4mm Ball Nose End Mill Diameter 4R2
Flute Length 8mm Overall Length 50mm
Shank Diameter 4mm Suitable For Cast Iron, Alloy Steel, General Steel Under Hardness HRC50
Coating AlTiSiN Raw Material WF25
Flute 2 Helix 30
High Light

double flute end mill HRC55 RLD

,

4mm 2 Flute Ball Nose End Mill

,

4mm ball nose cutter
Leave a Message
Product Description

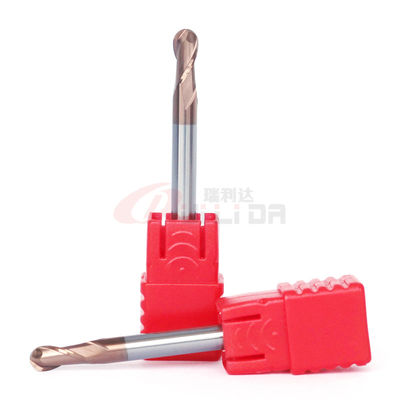

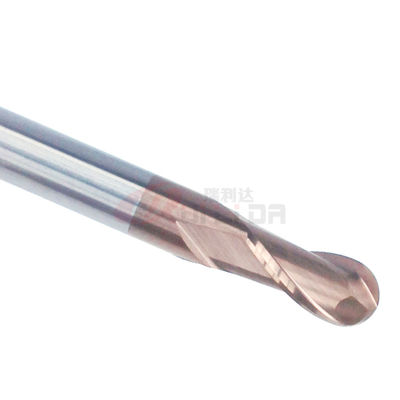

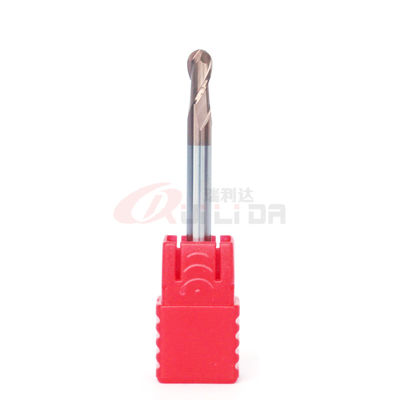

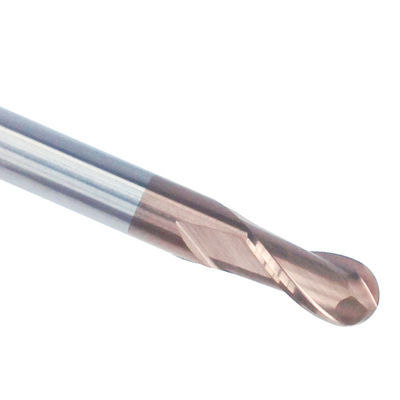

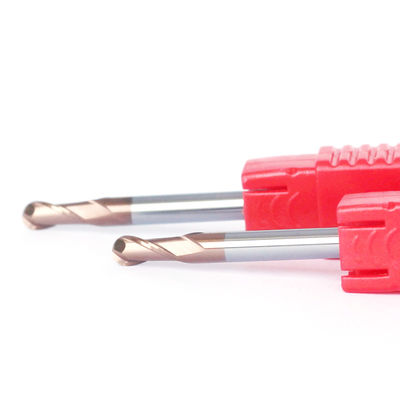

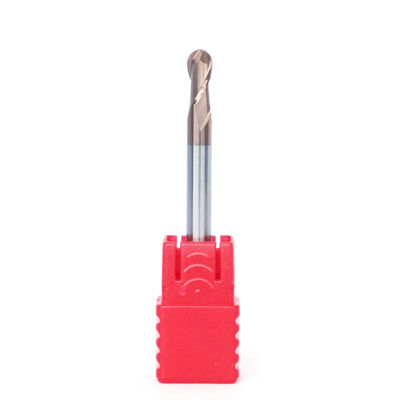

HRC55 Tungsten Solid Carbide 2 Flute Ball Nose End Mill 4mm R2 for Steel with TiSiN Coating



Product name RLD HRC55 2 flutes 4mm ball nose end mill
Specification  R2*8*50*4D*2F
Suitable for  Alloy steel, Super Alloy Steel, Stainless Steel, etc.
Machine type CNC Milling Machine
Flutes 2
Coating   AlTiSiN/Customized
Helix 30°
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to requirements





             RLD HRC55 2F Carbide Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating 0

1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating 1

1mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating 21mm 3mm 4mm ball nose end mill cutter for stainless steel double flute TiSiN Coating 3



                                                     FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide milling cutters which established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.





3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, TNT, ETC.

For large amount, we can send by air or by sea.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually, the lead time is around 5-10 business days.



5. Which payment methods do you accept?

We accept T/T/Credit Card/PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.



8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.



9. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
